YSB210 80 ton Excavator Concrete Breaker Hydraulic Hammer
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | YSB210 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impact Frequebcy | 180-200bpm | Suitable Excavator(ton) | 60-80 Ton |
|---|---|---|---|
| Chisel Diameter | 210mm | Name | Excavator Concrete Breaker |
| Weight | 3400KG | Hydraulic Flow Range | 290-350 |
| Highlight | 80 Ton Excavator Concrete Breaker,YSB210 Excavator Concrete Breaker |
||
Product Description

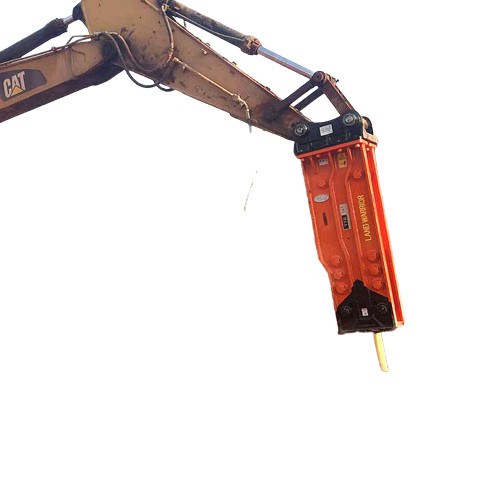

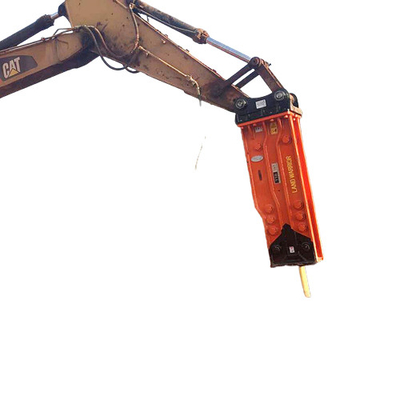

YSB210 Excavator Concrete Breaker used hydraulic hammer for large excavator
What Is An Excavator Hydraulic Breaker?
A hydraulic breaker for your excavator is a unique tool that is fixed in place of the excavator’s digger bucket. It uses hydraulics, meaning that you can control its strike rate from within the excavator cab. It is also known as the percussion hammer.
Product model and relevant data
| Specname | Unit | YSBT155 | YSB165 | YSB165A | YSB175 | YSB175A | YSB185 | YSB195 | YSB210 |
| Body weight | kg | 1313 | 1442 | 1590 | 1933 | 1925 | 2145 | 2630 | 3400 |
| Total weight | kg | 2577/2574/2968 | 2571/3156/2916 | 3015 | 3910/4470/3902 | 3725 | 4420 | 4680/4793 | 7700/7045 |
| size | mm | 2776*590*1382 | 2820*590*1378 | 2820*665*1445 | 3184*670*1670 | 3255*764*1608 | 3255*764*1576 | 3433*764*1635 | 3600*864*1945 |
| 3102*600*760 | 3820*760*840 | 3812*760*920 | 4021*764*920 | 4290*864*1007 | |||||
| 3075*640*760 | 3337*654*840 | 3723*670*920 | |||||||
| Operating pressure | Kg/c㎡ | 180-200 | 160-200 | 180-220 | 180-220 | 180-220 | 190-220 | 190-220 | 200-240 |
| Hydraulic flow range | L/min | 180-240 | 200-260 | 200-250 | 200-260 | 220-270 | 220-270 | 220-290 | 290-350 |
| Diameter of house | inch | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 |
| Diameter of tool | mm | 155 | 165 | 165 | 175 | 175 | 185 | 195 | 210 |
| Impact frequebcy | bpm | 300-450 | 250-400 | 250-380 | 200-350 | 200-300 | 200-250 | 2180-200 | 180-200 |
| Suitable carrier | ton | 28-36 | 30-40 | 30-40 | 35-40 | 35-45 | 36-45 | 40-55 | 60-80 |
Product application range
Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
