Yellow Construction Excavator Breaker Hammer Safety Frame Damage Resistant
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Condition | New, 100%new | Color | Yellow |
|---|---|---|---|
| Applicable Industries | Construction | Application | Hydraulic Breaker |
| Core Components | PLC, Gearbox | Origin | GUANGZHOU |
| High Light | Yellow Excavator Breaker Hammer,Safety Frame excavator rock breaker,FANGBANG Excavator Breaker Hammer |
||
Product Description

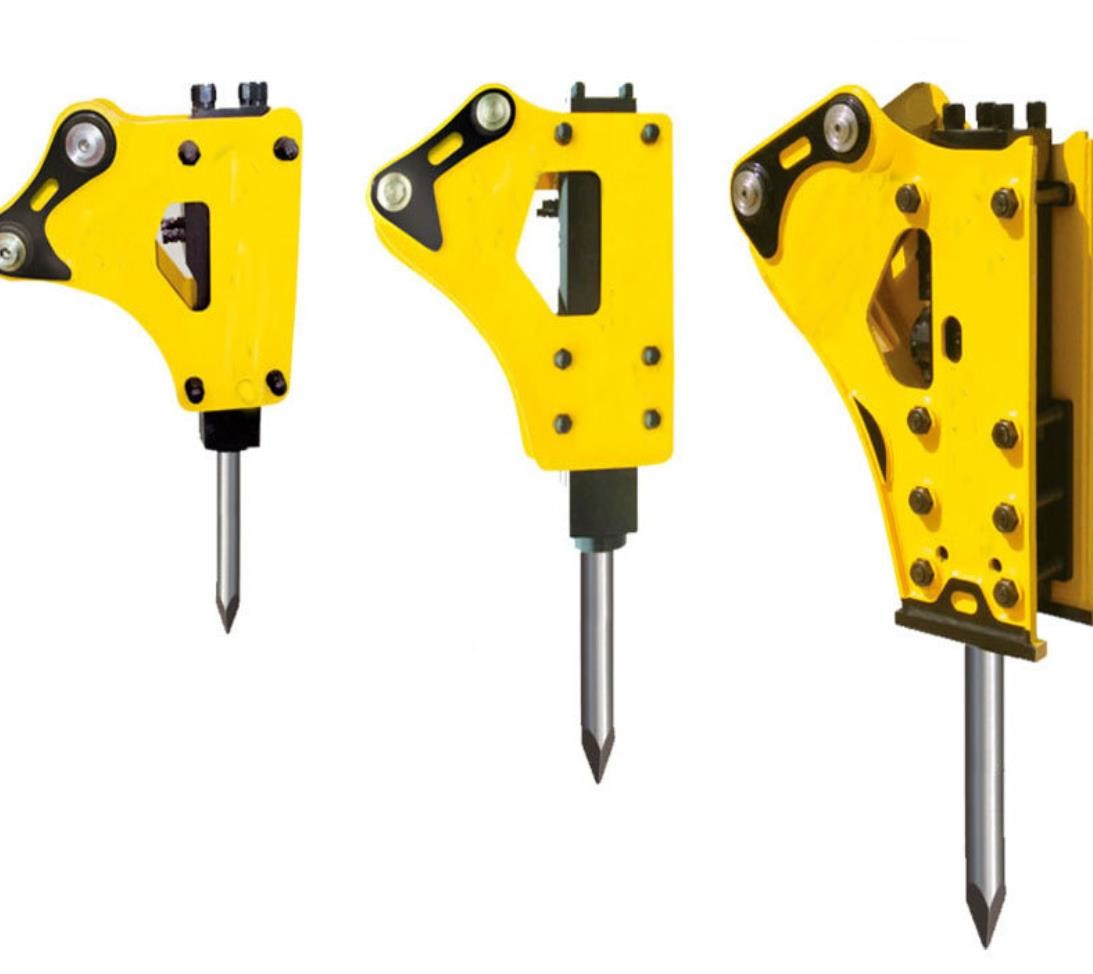

Yellow Construction Excavator Breaker Hammer Safety Frame Damage Resistant
Damage-Resistant Material
Extending Undercarriage
Safety Frame
Simple Control
Seasy Maintenance
Versatility
Extending Undercarriage
FEATURE & BENEFITS
• Quick and easy to install. Flexible operation with wide vision for cost saving and higher efficiency operation.
• Noisier than the Silent type but less in overall weight that makes it easier to use for positioning, suitable for mining work. • With best design, manufactured by least number of components, with fewer accessories, lower faults and easy to maintain.
Our Advantages
1. Long warranty period --12 months warranty
2. Special material : durable and longer service life, --40CrNiMo,42CrMo,20CrNiMoA etc
3. High precision accessories and reduce wear and tear.
4. Heat treatment and subzero treatment to reduce the deformation and not easy scratched
5. Suitable excavator:DOOSAN,SANY,KOBELCO,CAT,KOMATSU,HITACH,VOLVO,HYUNDAI etc.
1. Through bolt : The fronthead, the cylinder and the back head of the main body are tightly fixed with four through bolts.
2. Valve : The cylinder compensates for pressure in the hydraulic circuit piston reciprocation.
3. Piston : Kinetic energy of the piston is converted into hammering energy after hitting the chisel. the raw
material:20CrNiMoA(best),35CrNiMoA,40CrNiMoA, and other suppliers use the only GCr15 to decrease the cost.
4. Main Body : Including Fronthead, cylinder and back head. Ensure your breaker will be in best perfomance
5. Chisel : The specially heat treated chisel is directly applied to break rocks.
There are four types for choosing : Moilm,Blunt,Flat,Conial Point. The material is 42Crmo.
6. Ring Bush & Front Cover : Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacture; forging again and again to make forming,to make internal
organization more tight, and increase products'wear-resistance.
7. Seal Kit : We can supply both Parker and NOK seal kit which are most famous brand in the bussines line.
PRODUCT SPECIFICATIONS
|
model
|
total weight
|
length
|
diameterof tool
|
suitable carrier
|
|
unit
|
kg
|
mm
|
mm inch
|
ton
|
|
FB100
|
53 117
|
918/1086/1190
|
10 1.57
|
0.8-2.5
|
|
FB200
|
71 156
|
1090/1235/1331
|
45 1.77
|
1.2-3.0
|
|
FB300
|
89 196
|
1178/1344/1417
|
53 2.08
|
2.5-4.5
|
|
FB400
|
156 343
|
1373/684/1660
|
68 2.68
|
4-7
|
|
FB400A
|
165 363
|
1373/1684/1660
|
68 2.68
|
4-7
|
|
FB430
|
214 471
|
1515/1706/1712
|
75 2.95
|
6-9
|
|
FB435
|
215 473
|
1630/1738/1717
|
75/80 2.95/3.15
|
6-9
|
|
FB435A
|
225 295
|
1630/1738/1717
|
75/80 2.95/3.15
|
6-9
|
|
FB450
|
282 620
|
1735/2120/2074
|
85 3.35
|
7-14
|
|
FB450A
|
301 662
|
1735/2120/2074
|
85 3.35
|
7-14
|
|
FB800
|
479 1054
|
1994/2387/2354
|
100 3.94
|
10-15
|
|
FB800A
|
503 1107
|
1994/2387/2354
|
100 3.94
|
10-15
|
|
FB1600
|
620 1364
|
2285/2673/2578
|
125 4.92
|
15-18
|
|
FB2000
|
850 1870
|
2423/2900/2847
|
135 5.31
|
18-26
|
|
FB2000F
|
846 1861
|
2427/2656/2646
|
135 5.31
|
18-26
|
|
FB2200
|
920 2024
|
2480/2866/2793
|
140 5.51
|
18-26
|
|
FB2200A
|
956 2103
|
2480/2866/2793
|
140 5.51
|
18-26
|
|
FB3000
|
1092 2402
|
2640/2897/3002
|
150 5.91
|
27-35
|
|
FB4500
|
1960 4300
|
3184/3812/3723
|
175 6.89
|
35-40
|
|
FB8000
|
2663 5842
|
3420/4021/-
|
195 7.68
|
45-60
|
Our service:
1. 7Days*24Hours after-sales service by email and phone
2. Your inquiry will be replied in 24 hours during workdays
3. Our customer-oriented sales and technical team are always at yourservice
4. OEM Service available
5. We can offer pick up service if clients come to visit our workshop
