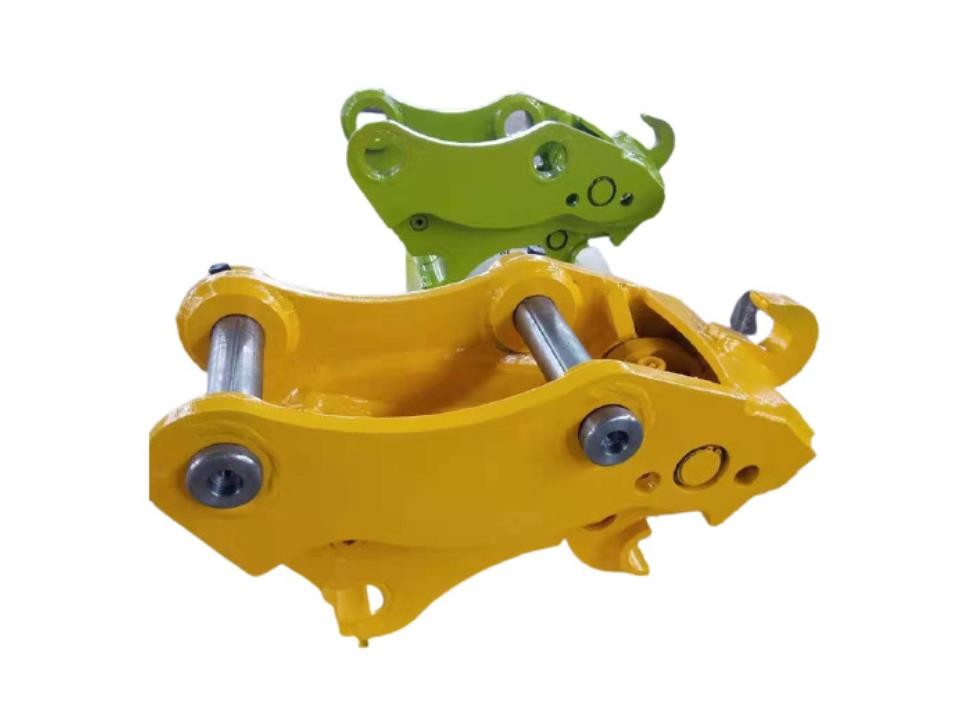

Construction Excavator Quick Coupler Hydraulic Quick Hitch With Double Lock
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Warranty | 1 Year | Type | Quick Coupler |
|---|---|---|---|
| After-sales Service Provided | Video Technical Support | Color | Customer Required |
| Applicable Industries | Construction Works | Suitable Excavator(ton) | All Models,3-50T |
| High Light | 50T Excavator Quick Coupler,3T Excavator Quick Coupler,Construction hydraulic quick hitch |
||
Product Description
Excavator Bucket Hydraulic Quick Hitch Multi Coupler With Double Lock
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
We can supply three type: hydraulic type, Double lock type and Mechanical type.
Product Description
Quick coupler can quickly install all kinds of configuration parts (bucket, ripper, compactor, hydraulic hammer, etc.) on the excavator,which can expand the scope of use of excavators, significantly save time and improve work efficiency. Quick coupler, also known as quick hitch, can be divided into mechanical quick coupler and hydraulic quick coupler.
Application
By installing Excavator quick coupler to your excavator, you can turn it into a MULTI tasking, MULTI functional piece of machinery. It makes the switching much easier among excavator attachments increasing the machine productivity and efficiency greatly.Jiangtu series hydraulic quick hitch coupler is compatible with various brand of excavators.
Mechanical/Manual Mini Excavator Quick Hitch Quick Coupler for All Famous Excavator Brands
| Machine Model | All the famous brand of Excavator |
| Type | Stardard/heavy duty/rock |
| Material | Q345B/Q460/NM360/NM400/WH60/Hardox400,500 |
| Capacity | 0.01-12m3 |
| Weight | 200-12000kgs |
| Colour | customized |
| Certification | BV certificate |
| environment | Rock,clay,sand,soil,gravel |
Specification:
| Model | Unit | RQH01D | RQH01D | RQH02D | RQH04D | RQH06D | RQH08D | RQH10D |
| Carrier Weight | T | 1~2 | 2~4 | 4~6 | 6~8 | 10~15 | 15~27 | 25~36 |
| Pin Diameter | mm | 30 | 35/40 | 45 | 50/55 | 60/65 | 70/80 | 90/100 |
| Arm Width(W1) | mm | 105~125 | 110~135 | 140~180 | 185~220 | 220~270 | 105~138 | 105~140 |
Center To Center | mm | 120~140 | 140~215 | 185~290 | 260~320 | 340~430 | 380~490 | 460~550 |
Equipping Distance | mm | 120~140 | 140~215 | 185~290 | 260~320 | 340~430 | 380~490 | 460~550 |
| Working Pressure | Bar | 40~248 | 40~248 | 40~248 | 40~205 | 40~205 | 40~205 | 40~205 |
| Oil Flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Unit Weight | Kg | 20 | 23.5 | 51-80 | 110 | 185 | 340 | 500 |
| Unit Length | mm | 370 | 400 | 505-610 | 655 | 820 | 980 | 1060 |
| Unit Width | mm | 220 | 240 | 275-330 | 312 | 440 | 510 | 560 |
| Unit High | mm | 210 | 210 | 265-320 | 335 | 410 | 490 | 560 |
Advantages:
1. Welding Technique: 15 years experience, full welding and not easy to crack.
2. Grease Nipple: Make pin not easy to wear
3. Double Lock System: Front jaw lock and Rear safety lock make the operation much safer. Which embrace the pins tightly even if the cylinder suddenly inoperation.
4. Imported oil cylinder and not easy to damage
5. Without safety pin and excavator operator can operate it in the cab alone.
