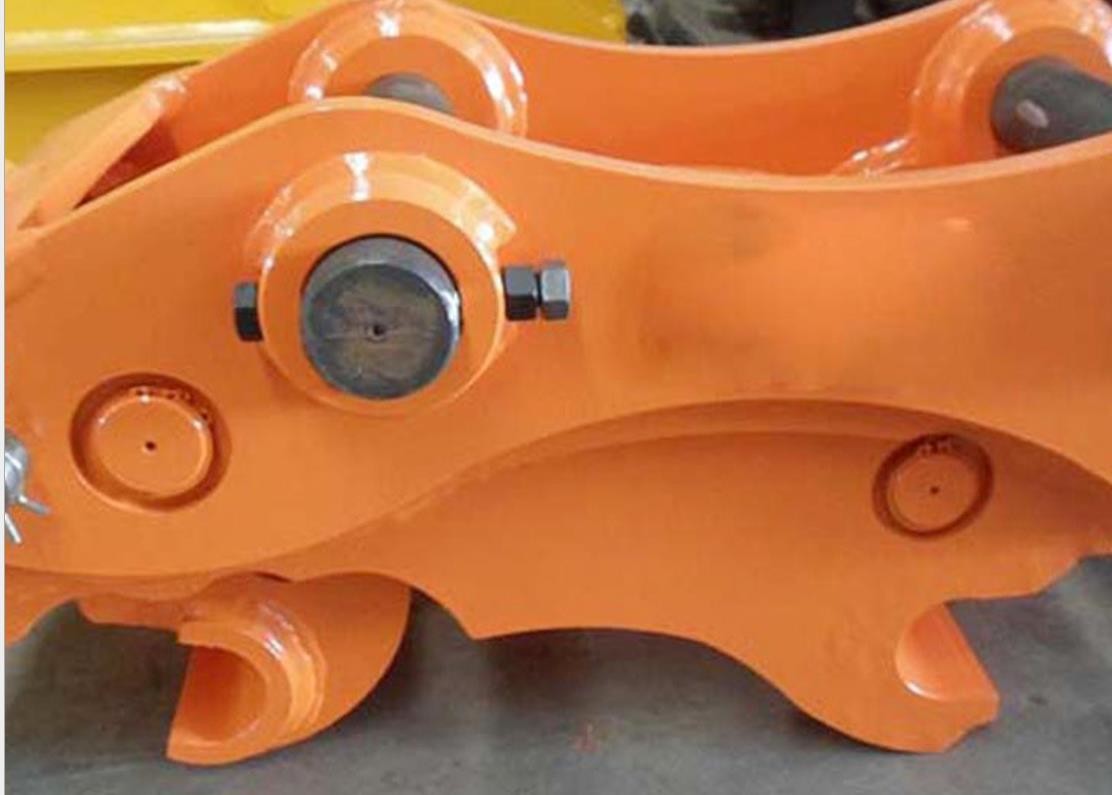

WH60 Mechanical Quick Coupler For Excavator Tilting Coupler Compact Design
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Type | Hydraulic Or Mechanical,mechanical Type Quick Coupler,Hydraulic | Material | Q345B,WH60,NM400 |
|---|---|---|---|
| Application | Excavator,Engineering Machine Excavator | Applicable Industries | Construction Works,Energy & Mining,Machinery Repair Shops |
| Color | Customer Required | After-sales Service Provided | Online Support |
| High Light | WH60 mechanical quick coupler for excavator,Q345B tilt hitch for excavators,NM400 mechanical quick coupler for excavator |
||
Product Description
Wear Resistant Steel Hydraulic Quick Hitch Coupler Tilting Coupler
With safety pin and rear tiger mouth locker, a double safety assurance make the quick coupler much more safer.
1. Use material of high hardness:Suitable for different machines of 1-45Ton.
2. Use security device of hydraulic cntrol valve to ensure the safety.
3. Use the best quality accessories.
4. All pins are heat-treated,firm and durable.
Factory hot selling excavator hydraulic quick hitch hydraulic quick coupler. Premium quality,Competitive price,Fast shipping, Quality guaranteed.
Feature:
1. Compact patented design, easy to maintance
2. Use wear-resistant steel for longer service life
3. Easy mechanical locks, prevent jamming in operation
1. Compact patented design, easy to maintance
2. Use wear-resistant steel for longer service life
3. Easy mechanical locks, prevent jamming in operation
4. Thicker grabber, Reliable performance
We can design and produce double locking quick couplers for various brands of excavators according to custormers’ requipment. Quick couplers can be used on the excavators to change every accessory(such as bucket,breaker,shear.etc)easily and quickly,which has enlarged the use scope of the excavators and saved a lot of time.
By installing the Fangbang coupler to your hydraulic excavator you can turn it into a multi function piece of machinery. Get much more done in the same day on the same site with one machine and all from the comfort and safety operators cab. By simply flicking the switch the jiangtu coupler enables your machine to switch within seconds from a bucket to a hydraulic hammer ,demolition tool, ripper attachment and more ......
Suitable for many kinds of brand and model of excavator:
KOMATSU, KOBELCO,HITACHI,KATO, SUMITOMO, CAT,HYUNDAI,DAEWOO,CASE,DOOSAN,VOLVO, JCB, JHON DEERE, KUBOTA,LIEBHERR,SANY,etc.
|
Model
|
Unit
|
FB02
|
|
Operating Weight
|
Kg
|
50-75kg
|
|
Overall Length(C)
|
mm
|
520-542
|
|
Overall Height(G)
|
mm
|
312
|
|
Overall Width(B)
|
mm
|
260-266
|
|
Forearm Open Width(A)
|
mm
|
155-172
|
|
Retractable Distance Of Oil Cylinder
|
mm
|
200-300
|
|
Pin Diameter
|
mm
|
40-45
|
|
Top To Bottom Pin Distance(F)
|
mm
|
200-210
|
|
Pin To Pin Center Distance(D)
|
mm
|
220-275
|
|
Working Pressure
|
kg/cm²
|
30-400
|
|
Oil Flow
|
L/min
|
10-20
|
|
Carrier
|
Ton
|
4-6
|
Product Accessories
With safety pin and rear tiger mouth locker, a double safety assurance make the quick coupler much more safer.
1. Use material of high hardness:Suitable for different machines of 1-45Ton.
2. Use security device of hydraulic cntrol valve to ensure the safety.
3. Use the best quality accessories.
4. All pins are heat-treated,firm and durable.
5. Parts like SUN valve and Simrit oil seals in cylinder have ensured a better performance and longer
