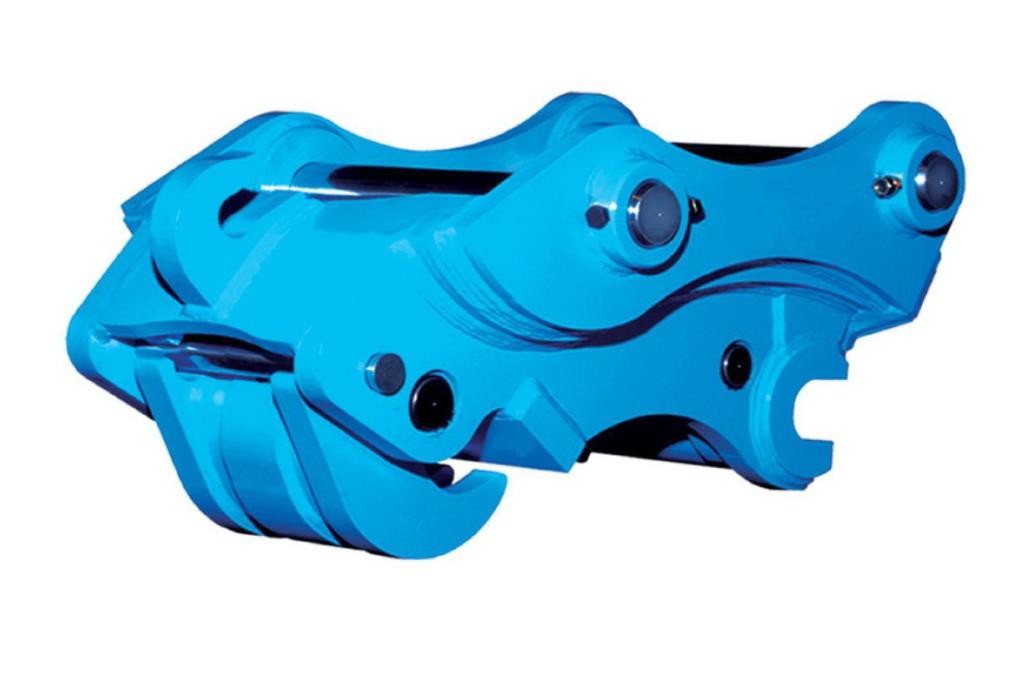

Q345B NM400 Case Backhoe Loader Quick Coupler Double Safety System
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Features | Double Safety System | Type | Quick Coupler |
|---|---|---|---|
| Material | Q345B+NM400 | Key Word | Tilt Quick Change |
| Applicable Industries | Farms, Energy & Mining, Construction Works | Quality Control | 100% Inspection |
| High Light | Q345B Case Backhoe Loader Quick Coupler,Q345B backhoe breaker attachment,NM400 Case Backhoe Loader Quick Coupler |
||
Product Description
Double Locking Excavator Quick Coupler Hydraulic Excavator Backhoe Breaker Attachment
Main Features
1) Used high strength alloy. Suitable for different machines weights and models.
2) Can change the accessories without disassembling the pin shaft. Provide high efficiency and easy installation.
3) Welding done by experienced worker with over 3 years of excavator attachment welding experience.
Manual quick coupler
It is mostly used for mini excavator.The manual coupler is better used for mini excavator, they are popular in Japan or some small
country.
country.
Hydraulic quick coupler
It is mostly used for bigger excavator.If your excavator weight is more than 5Tons,we advise that you choose hydraulic quick
coupler, it is safer and more convenient than manual coupler.It can install easily because of hydraulic system.
coupler, it is safer and more convenient than manual coupler.It can install easily because of hydraulic system.
Application
By installing Jiangtu quick coupler to your excavator, you can turn it into a MULTI tasking, MULTI functional piece of machinery. It makes the switching much easier among excavator attachments increasing the machine productivity and efficiency greatly.Jiangtu series hydraulic quick hitch coupler is compatible with various brand of excavators.
Advantage of quick coupler
l Well-designed based on Europen safe operation standard.
l New design with special steel material,high intensity,but light weight.
l No need to change the top bracket of the linked bucket and breaker.
l Less malfunction and easy to maintain.
l Reasonable designed distance of pin make products fasten and reliable.
l Full Automatic Safety System
A switch in the cab enables you to have the safety pin in its “lock” or “release” position effortlessly.
A revolutionary technology to turn on and off the safety pin
Specification
Model | FIts to Excavator | Pin Diameter | Pin Center | Ear Distance | Weight | Dimension |
Ton | mm | mm | mm | kg | mm | |
GL50 | 4-5.5 | 45-50 | 230-270 | 155-170 | 85 | 650*350*350 |
GL80 | 6-8.5 | 50-55 | 290-360 | 180-200 | 100 | 700*400*400 |
GL120 | 9-16 | 60-70 | 380-420 | 232-315 | 200 | 850*500*450 |
GL200 | 17-22.5 | 70-80 | 460-480 | 306-340 | 400 | 1000*520*600 |
GL250 | 23-32 | 80-90 | 473-540 | 325 | 600 | 1050*600*650 |
GL250 | 23-32 | 80-90 | 473-540 | 330-350 | 600 | 1050*600*650 |
GL350 | 33-45 | 90-120 | 550-620 | 416-469 | 700 | 1100*600*700 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample order accepting.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service through vedio.
