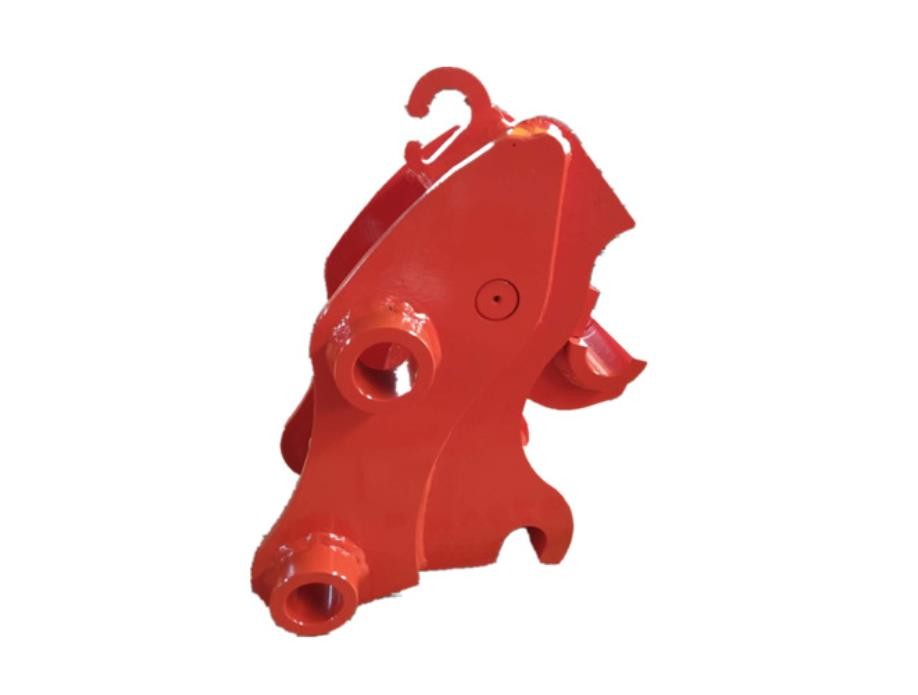

Engineering Machine Excavator Quick Coupler Excavator Quick Hitch
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Applicable Industries | Construction Works,Energy & Mining | Material | Q345B |
|---|---|---|---|
| Application | Excavator,Engineering Machine Excavator | Type | Hydraulic Or Mechanical,mechanical Type Quick Coupler |
| Packing | Wooden Pallet | Oil Flow | 10-20 L/min |
| High Light | Engineering Machine Excavator Quick Coupler,Mining Excavator Quick Coupler,Q345B mini excavator tilt coupler |
||
Product Description
Energy Mining Excavator Quick Coupler Excavator Quick Hitch
Hydraulic quick coupler main features:
1. 12 months quality warranty, 6 months free replacement;
2. Q345B materials body with USA-made solenoid valve;
3. Original Germany-made oil seals and joints;
4. Original Japan switch;
5. All spare parts ready for installation ( pins, pipes, solenoid valve, switch, wire harness, manual, kit, bolts and nuts etc.).
1. 12 months quality warranty, 6 months free replacement;
2. Q345B materials body with USA-made solenoid valve;
3. Original Germany-made oil seals and joints;
4. Original Japan switch;
5. All spare parts ready for installation ( pins, pipes, solenoid valve, switch, wire harness, manual, kit, bolts and nuts etc.).
Quick connector structure:
The quick connector is a kind of structural parts, which is composed of main support, movable clamp block, hydraulic cylinder, pin shaft and other parts.
1. Spec.of Quick Hitch
1, Use material of high hardness.Suitable for different machines of 4-45ton.
2, Use security device of hydraulic control valve to ensure the safety.
3, Can change the accessories without disassembling the pin and axle.
Thus reslize faster installation and much higher efficiency
We can design and produce quick hitches for various brands of excavators according to customers,requirement. quick hitch can be used on the excavators to change every accessory(such as bucket,breaker,shear,etc)easily and quickly,which has enlarged the use scope of the excavators and saved a lot of time.
|
model
|
unit
|
DEHN MINI
|
DEHN 02
|
DEHN 04
|
DEHN 06
|
DEHN 08
|
DEHN 10
|
DEHN 17
|
|
overall length
|
mm
|
388
|
534-545
|
600
|
765
|
924-944
|
983-1050
|
1006-1173
|
|
overall height
|
mm
|
246
|
307
|
310
|
388
|
492
|
574
|
558-610
|
|
overall width
|
mm
|
175
|
258-263
|
270-280
|
354-436
|
449-483
|
543-568
|
606-663
|
|
foream open width
|
mm
|
80-140
|
155-170
|
180-200
|
232-315
|
306-340
|
375-411
|
416-469
|
|
pin to pin center distance
|
mm
|
80-150
|
230-270
|
290-360
|
380-420
|
460-480
|
473-540
|
550-620
|
|
retractable distance of oil cylinder
|
mm
|
170-206
|
205-275
|
340-450
|
340-486
|
256-590
|
413-590
|
520-590
|
|
top to bottom pin distance
|
mm
|
159
|
195
|
195
|
220
|
275
|
300
|
360
|
|
pin diameter
|
mm
|
25-40
|
45-50
|
50-55
|
60-70
|
70-80
|
80-90
|
90-120
|
|
weight
|
kg
|
25-30
|
50-60
|
80-90
|
120-130
|
280-290
|
450-530
|
450-580
|
|
working pressure
|
kg/cm²
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
40-380
|
|
required oil flow
|
l/min
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
|
suitable excavator
|
ton
|
1.5-4
|
4-6
|
5-9
|
9-19
|
17-23
|
23-35
|
33-45
|
Advantages:
1. Over 10 years exporting experience in this gasoline garden tools area.
2. 24 hours On Line Customer Service.
3. OEM and ODM Services
4. Reasonbale Price,Attractive Design,High Working Performance.
5. Professional QC-Inspection Report With Every Details Will Be Provided.
3. OEM and ODM Services
4. Reasonbale Price,Attractive Design,High Working Performance.
5. Professional QC-Inspection Report With Every Details Will Be Provided.
FAQ
1. Is that the main body color customized? Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is
available to provided .
5. What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products
. 7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is
available to provided .
5. What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products
. 7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
