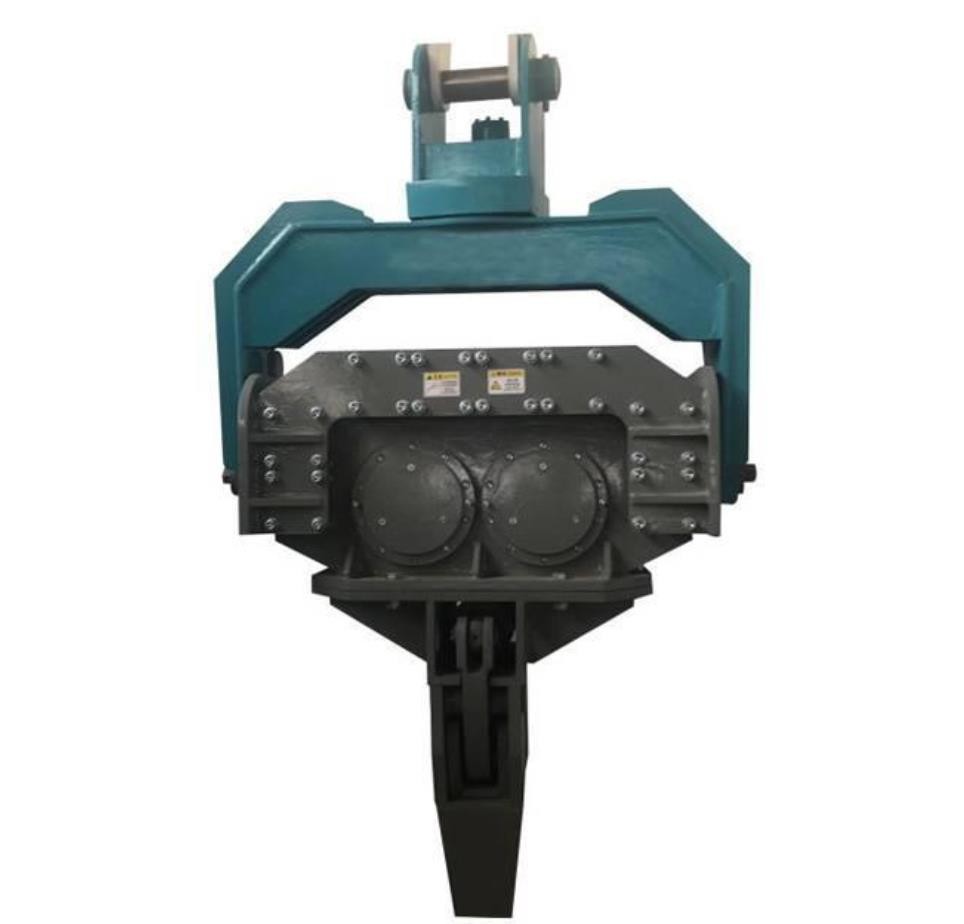

6m/Min Excavator Pile Driver 3800kg Hydraulic Pile Driver

Place of Origin GUANGZHOU
Minimum Order Quantity negotiable
Price negotiable
Packaging Details standard packing
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Week
Product Details
Applicable Industries Hotels, Farms, Restaurant, Construction Works Piling Speed(m/min) 6m/min
UNIQUE SELLING POINT High Operating Efficiency Efficiency High Efficiency
Weight 3800kg Warranty 1 Year
High Light

3800kg Excavator Pile Driver


6m min hydraulic pile driver


6m min Excavator Pile Driver

Leave a Message
Product Description

High Operating Efficiency Excavator Pile Driver Hydraulic Pile Driver



Advantage of Excavator Sheet Pile Hammer
1. High efficiency of driving piles
2. Easy operation and maintenance
3. Environment-friendly product
4. High quality components
5. Long lifespan

Scope Of Excavator Sheet Pile Driver Application
1. sheet pile, tube pile, H beams, Larsen steel sheet pile,etc
widely use for workplaces, congested areas, under bridges, narrow roads, minimal noise in urban renewal.
2. Suitable for excavator range from 18 to 50 ton

Spare Parts Of Excavator Pile Driver
1: Motor: France LEDUC imported motor.
2: Bearings:Germany FAG imported bearings
3: Rubber: TAIWAN brand rubber shock block.



hydraulic pile driver generate high-frequency vibrations of more than 2600-2800 times per minute, which can genetrate deep soil in an instant, and the strength is more than 20-45 tons.


Our vibratory hammer for excavator have been approved by CE authority.It have four superior functions:easy operation and maintenance,Environment-friendly product,high efficiency of driving piles, long lifespan. it can be used for river-bank maintenance and marshland working wherever onshore and offshore piling job.


Main feature of mini excavator mounted vibratory hammer

1) 360 degree rotation of the middle bracket

2) Various pile driving, sheet pile, pipe pile, H-beam, steel plate, etc.

3) Excellent mobility in narrow places compared with cranes

4) The high shear load of the heavy-duty elastomer cushion prevents vibration from being transmitted to the excavator.

5) Easy installation and control. Suitable for all kinds of workplaces, congested areas, under bridges, narrow roads, minimal noise in urban renewal.


Item FB300 FB400
Eccentric Moment 40Nm 85Nm
Centrifugal Force 300kN 570kN
Amplitude 6.8mm 14mm
Frequency 2800rpm 2800rpm
Pressure 240-260kg/cm2 240-260kg/cm2
Oil Flow 155-200L/min 200-255L/min
Max Turning 360degree 360degree
Package Size hammer with clamp:1450mm*1550mm*1650mm hammer with clamp:1650mm*1700mm*1950mm
vice arm: 3400mm*800mm*1200mm vice arm: 3400mm*800mm*1400mm
Total: 7.41cube meters Total: 8.81cube meters
Net Weight hammer with clamp: 2200kg hammer with clamp: 2800kg
vice arm: 550kg vice arm: 780kg
Total: 2750kg Total: 3580kg
Suitable excavator 20-35tons 35-50tons
