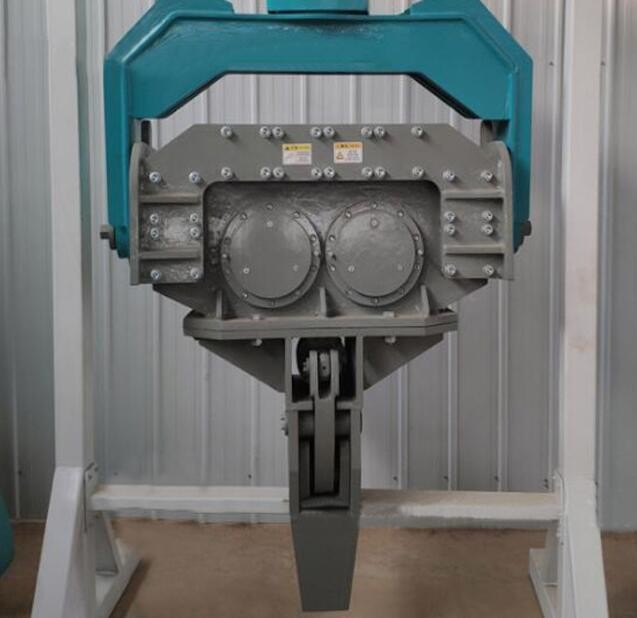

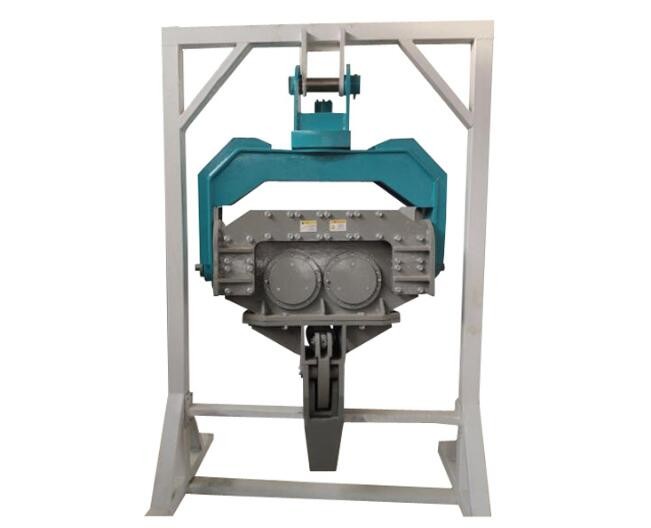

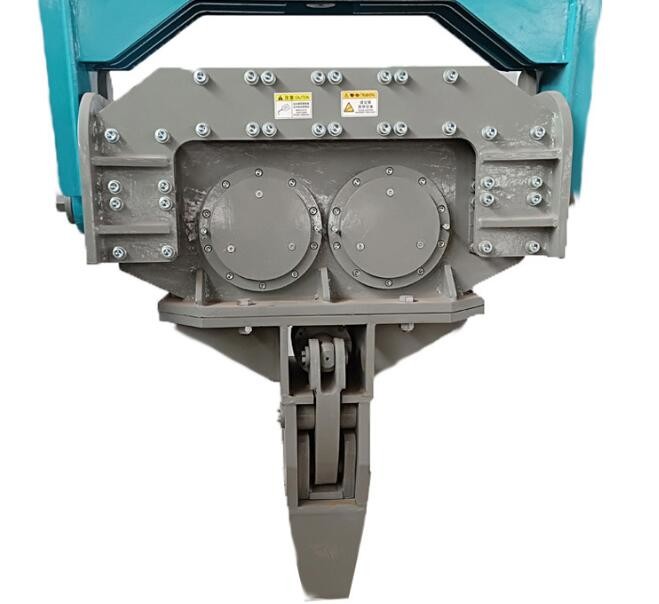

Construction Works 17ton Excavator Pile Driver Hydraulic Pile Driver
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
Product Details
| Applicable Industries | Building Material Shops, Construction Works | Piling Speed(m/min) | 6m/ Min |
|---|---|---|---|
| UNIQUE SELLING POINT | High Digging Power | Composition | Assistant Hand,main Body, Clip Mouth |
| Suitable Excavator | 12-17ton | Type | Hydraulic Sheet Pile Driver |
| High Light | 6m Min Excavator Pile Driver,12ton Hydraulic Pile Driver,17ton Excavator Pile Driver |
||
Product Description
Construction Works Excavators Vibratory Pile Driver Hydraulic Pile Driver
Features
* Adopts highly efficient imported damping rubber block, stable quality, laongservice life.
* Adopts original imported hydiraulic motor, high efficiency of vibrating power.
* Powarful hydraulic cylinder, super duralblle tooth pieca.
* Strong and tight clip mouth ensures safety.
* Liltle noise and short construction period, overcome errvironimental problems.Designed for excellent strength, good durability and performance.
* Applied to plle or extract steell sheet piles,steel pipe piles,cement pile, Especially suitable for municipal,bridges, coflferdam, building foundation ets.
◆Using Q345 manganese plate steel, high strength, and corrosion resistance;
◆The pin shaft is made of 42CrMo alloy steel with built-in oil passage, which has high strength and good toughness;
◆The rotating motor adopts Swiss imported motor;
◆The vibration motor adopts a German Bosch Rexroth hydraulic motor, which is strong and durable;
◆The oil seal adopts the imported oil seal from the United States to extend the service life;
◆The shock absorber adopts Korean Autox, which is self-willed and wear-resistant;
◆One-piece design, safe and stable, low failure rate.
Details
hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects. Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc. With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles, etc.
1. Applied to driving and pulling steel plate, cement pile, steel rail, round pipe, steel H-pile, Lasson pile.
2. fast conversion between driving and pulling work.
3. less tension when pulling piles.
4. no damage to the bottom or top of steel plate and steel rail pile.
5. No damage to the buildings even working frequently nearby.
6. Silent work and short construction period, overcome environmental problems.
Specification
|
Item/Model
|
Unit
|
JSP180
|
JSP250
|
JSP280
|
JSP350
|
JSP450
|
|
|
Sunitable Excavator
|
ton
|
12-17
|
18-25
|
25-30
|
30-40
|
40-50
|
|
|
Eccentric Moment
|
Nm
|
32
|
36
|
40
|
45
|
65
|
|
|
Frequency
|
rpm
|
2500
|
2800
|
2800
|
2800
|
2800
|
|
|
Centrifugal Force
|
kN
|
172
|
265
|
330
|
420
|
570
|
|
|
Working Pressure
|
bar
|
300
|
300
|
320
|
320
|
320
|
|
|
Oil Flow
|
L/min
|
120
|
155
|
155
|
168
|
255
|
|
|
Max Turning
|
Degree
|
180
|
180
|
180/360
|
180/360
|
180/360
|
|
|
Weight
|
Main Body
|
kg
|
1100
|
1700
|
1900
|
2800
|
2960
|
|
Extension Boom
|
kg
|
260
|
500
|
500
|
700
|
740
|
|
|
Total Weight
|
kg
|
1360
|
2200
|
2400
|
3500
|
3700
|
|
How does a hydraulic excavator pile hammer work?
1. The vibrating pile hammer uses its high-frequency vibration to vibrate the pile body with high acceleration to generate the pile by mechanical vertical vibration, which causes the oil structure around the pile column to change, thereby changing the direction around the pile. Reduces frictional resistance between pile and soil. 2. Then use the excavator to push down, vibrate the pile hammer and the weight of the pile body sink into the pile When digging a pile, use an excavator hoist to pull the pile out under vibration force. 3. The excitation force required by pile machinery is determined by the soil on the site Conditions, moisture content, and type of pile, construction.
