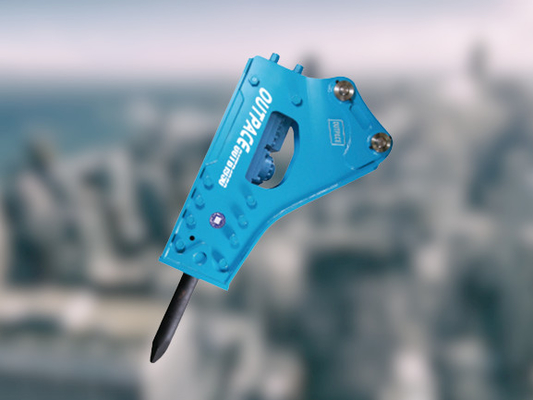

OT1950 Hydraulic Breaker For 55-70 ton Excavator Hydraulic Crushing Hammer Machine
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | OT1950 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Impact Frequebcy | 200-300bpm | Suitable Excavator(ton) | 55-70 Ton |
|---|---|---|---|
| Chisel Diameter | 195mm | Name | Hydraulic Crushing Hammer Machine |
| Weight | 5213KG | Hydraulic Flow Range | 280-360 L/min |
| Operating Pressure | 200-240 Bar | Back Head Pressure | 26-35kg/cm² |
| High Light | OT1950 Hydraulic Breaker,55 Ton Excavator Hydraulic Breaker |
||
Product Description
OT1950 hydraulic breaker for 55-70ton excavator Hydraulic crushing hammer machine
Product model and relevant data
| Ltem | Units | 0T 1950 | |
| Job weight | Side type | kg | 5213 |
| Top type | kg | 5435 | |
| Box type | kg | 5610 | |
| Operating pressure | bar | 200-240 | |
| Required oil flow | l/min | 280-360 | |
| Impact Rate | bpm | 200-300 | |
| Hoses Diameter | inch | 1 1/4” | |
| Back Head Pressure | kg/cm² | 26-35 | |
| Tool Diameter | mm | 195 | |
| Suitable Excavator | Ton | 55-70 | |
What Are Some of the Common Problems Excavator Hydraulic Breakers Have?
There are three main issues that most excavator hydraulic breakers face at some point in their service life:Damaged Piston,A broken tie bolt,Exorbitant Shaking
Here’s the deal:
There may be other problems that may face the hydraulic breaker that is unique to your particular hydraulic breaker. Should you note any anomaly in the performance of your hydraulic hammer, consider reaching out to your favorite mechanic to help you troubleshoot the problem before it blows out of proportion.
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
