OT1650-S Large Excavator Jack hammer Attachment Hydraulic Crushing Hammer Machine
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | OT1650-S |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Impact Frequebcy | 250-380bpm | Suitable Excavator(ton) | 30-45 Ton |
|---|---|---|---|
| Chisel Diameter | 165mm | Name | Hydraulic Crushing Hammer Machine |
| Weight | 3289KG | Hydraulic Flow Range | 200-260 L/min |
| Operating Pressure | 170-200 Bar | Back Head Pressure | 18-22 Kg/cm² |
| High Light | OT1650-S Excavator Jack Hammer,Hydraulic Crushing Excavator Jack Hammer |
||
Product Description

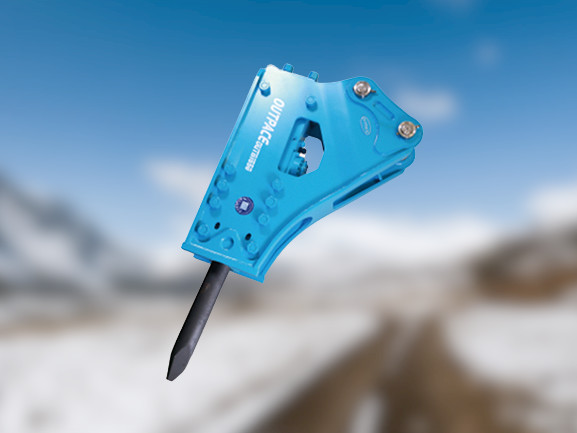

OT1650-S large excavator jackhammer attachment Hydraulic crushing hammer machine
Product model and relevant data
| Ltem | Units | 0T 1650 | 0T 1650S | |
| Job weight | Side type | kg | 2915 | 3289 |
| Top type | kg | 3295 | 3503 | |
| Box type | kg | 3117 | 3399 | |
| Operating pressure | bar | 160-180 | 170-200 | |
| Required oil flow | l/min | 200-260 | 200-260 | |
| Impact Rate | bpm | 250-400 | 250-380 | |
| Hoses Diameter | inch | 1 1/4” | 1 1/4” | |
| Back Head Pressure | kg/cm² | 18-22 | 18-22 | |
| Tool Diameter | mm | 165 | 165 | |
| Suitable Excavator | Ton | 30-40 | 30-45 | |
How Do I Choose A Hydraulic Breaker for My Excavator?
There are five primary considerations that need to be put in place when choosing the ideal hydraulic breaker for your excavator. Check them out:
1. The breaker needs to match the task/project
2. Always select the correct equipment for the project
3. DO NOT allow blank firing
4. Ensure that your hydraulic breaker has high-quality housing
5. Go for a hydraulic breaker that has an auto-adjust impact
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
