OT1550 Hydraulic Rock Hammer For Excavator Crushing Hammer Machine
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | OT1550 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Impact Frequebcy | 300-450bpm | Suitable Excavator(ton) | 28-35 Ton |
|---|---|---|---|
| Chisel Diameter | 155mm | Name | Hydraulic Crushing Hammer Machine |
| Weight | 2655KG | Hydraulic Flow Range | 180-240 L/min |
| Operating Pressure | 160-180 Bar | Back Head Pressure | 18-22 Kg/cm² |
| High Light | OT1550 Hydraulic Rock Hammer,Excavator Hydraulic Rock Hammer |
||
Product Description

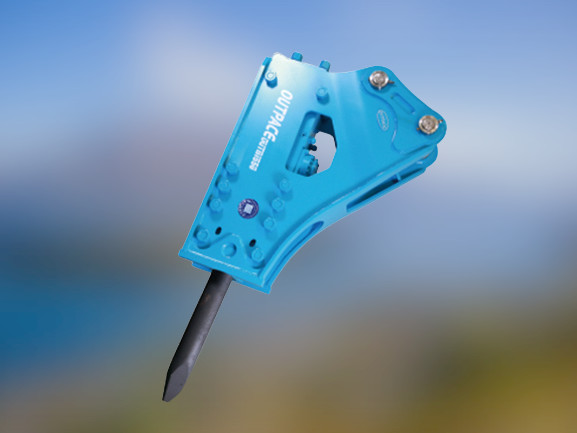

OT1550 hydraulic rock hammer for excavator Hydraulic crushing hammer machine
What Are the Components of A Hydraulic Breaker?
Your excavator’s hydraulic breaker has several components that work together systematically to deconstruct stone elements. Check them out:
Side Rods,Nitrogen Chamber,Auto-grease System,Piston Mass and Supporting Area,Control Valve,Seal kit,Retainer Pins,Hardened Chisel and Stop Pin
All these are the basic components of any excavator hydraulic breaker. Different brands may have additional components. It is thus advisable to keep your hydraulic breaker’s operations and service manuals close to you.
All hydraulic breakers come with an enclosure that protects all their components from physical damages.
Product model and relevant data
| Ltem | Units | 0T 1550 | |
| Job weight | Side type | kg | 2655 |
| Top type | kg | 3059 | |
| Box type | kg | 2896 | |
| Operating pressure | bar | 160-180 | |
| Required oil flow | l/min | 180-240 | |
| Impact Rate | bpm | 300-450 | |
| Hoses Diameter | inch | 1 1/4” | |
| Back Head Pressure | kg/cm² | 18-22 | |
| Tool Diameter | mm | 155 | |
| Suitable Excavator | Ton | 28-35 | |
Product application range
Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
