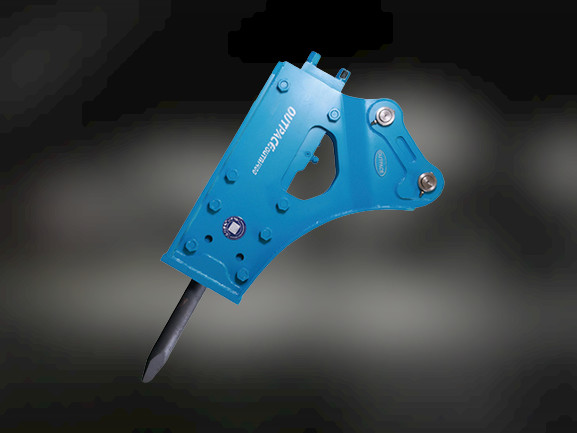

OT1400 Hydraulic Concrete Breaker For Excavator Crushing Hammer Machine

Place of Origin GUANGZHOU
Model Number OT1400
Minimum Order Quantity negotiable
Price negotiable
Packaging Details standard packing
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Week
Product Details
Impact Frequebcy 350-500bpm Suitable Excavator(ton) 18-26 Ton
Chisel Diameter 140mm Name Hydraulic Crushing Hammer Machine
Weight 1950KG Hydraulic Flow Range 120-180 L/min
Operating Pressure 160-180 Bar Back Head Pressure 16-20 Kg/cm²
High Light

OT1400 Hydraulic Concrete Breaker


Excavator Hydraulic Concrete Breaker

Leave a Message
Product Description

OT1400 hydraulic concrete breaker for excavator Hydraulic crushing hammer machine

What Is An Excavator Hydraulic Breaker?

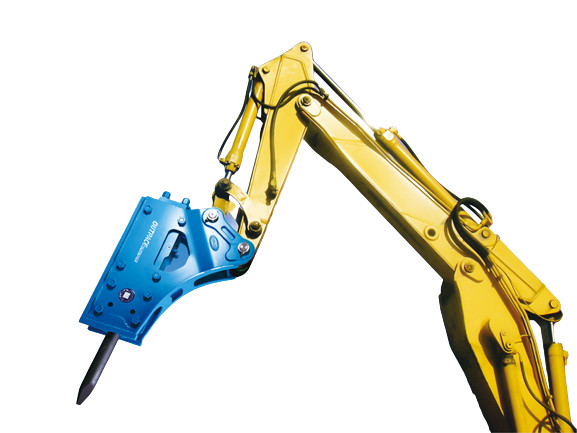

A hydraulic breaker for your excavator is a unique tool that is fixed in place of the excavator’s digger bucket. It uses hydraulics, meaning that you can control its strike rate from within the excavator cab. It is also known as the percussion hammer.
Check this out:


Your excavator’s hydraulic system health needs to be on point for this hydraulic breaker to function as optimally as it should. The hydraulic breaker itself has seals that also prevent hydraulic leakage and ensure optimal hydraulic pressure is achieved.

Product model and relevant data

Ltem Units 0T 1400
Job weight Side type kg 1950
Top type kg 2050
Box type kg 1978
Operating pressure bar 160-180
Required oil flow l/min 120-180
Impact Rate bpm 350-500
Hoses Diameter inch 1”
Back Head Pressure kg/cm² 16-20
Tool Diameter mm 140
Suitable Excavator Ton 18-26


Product application range

Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
