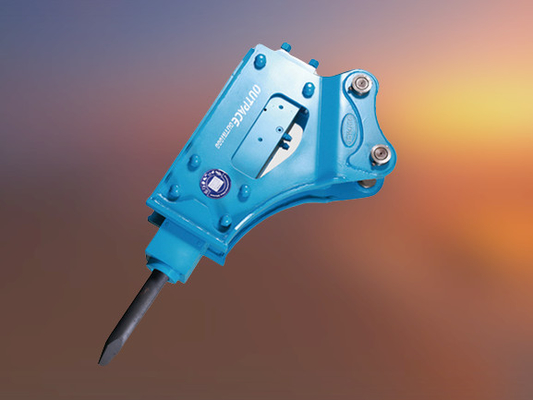

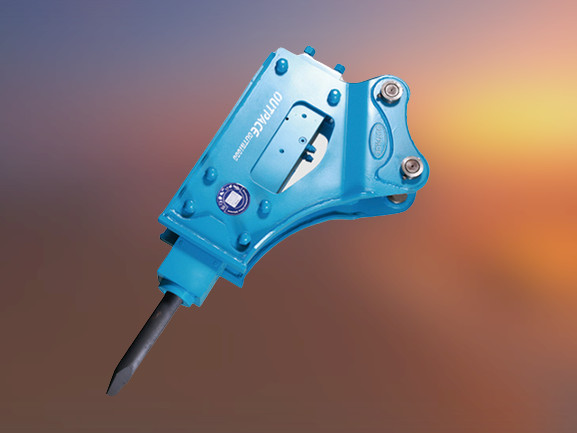

OT1000 Jack Hammer Digger Hydraulic Crushing Hammer Machine

Place of Origin GUANGZHOU
Model Number OT1000
Minimum Order Quantity negotiable
Price negotiable
Packaging Details standard packing
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Week
Product Details
Impact Frequebcy 350-700bpm Suitable Excavator(ton) 10-16 Ton
Chisel Diameter 100mm Name Hydraulic Crushing Hammer Machine
Weight 842KG Hydraulic Flow Range 80-110 L/min
Operating Pressure 150-170 Bar Back Head Pressure 13-16 Kg/cm²
High Light

OT1000 Jack Hammer


Digger Jack Hammer


Digger Hydraulic Crushing Hammer

Leave a Message
Product Description

OT1000 jack hammer digger Hydraulic crushing hammer machine

What Does An Excavator Hydraulic Breaker Do?

Your excavator hydraulic breaker is mounted on an excavator in place of the excavator digger bucket. It runs on hydraulic power. It can then be used to break stone materials in mining areas and construction zones. You’ll, however, find them more frequently in road construction areas.

The hydraulic breaker strikes the stone element with force using its hardened chisel. It will strike stone elements and break them down until they are broken into manageable sizes.


In other words:


The hydraulic breaker is a robust mechanical device that can be beneficial if used correctly.


Product model and relevant data

Ltem Units 0T 1000
Job weight Side type kg 842
Top type kg 979
Box type kg 948
Operating pressure bar 150-170
Required oil flow l/min 80-110
Impact Rate bpm 350-700
Hoses Diameter inch 3/4”
Back Head Pressure kg/cm² 13-16
Tool Diameter mm 100
Suitable Excavator Ton 10-16



Product application range

Mining: Breaking ore rocks, Second time crushing, Screen crushing
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our Advantages
1) Applicable for different brands of excavators, simple& convenient &comfortable operation, easy maintenance
2) High Quality & high precision, high stability &high durability.
3) Low rate of chisel breakage and high working efficiency
4) Wear-resistant and super heat treatment technology
5) Low noise, saving energy and protecting environment
6) Powerful Hydraulic System Increased the Impact of Nitrogen
7) ISO certified by local Authority
