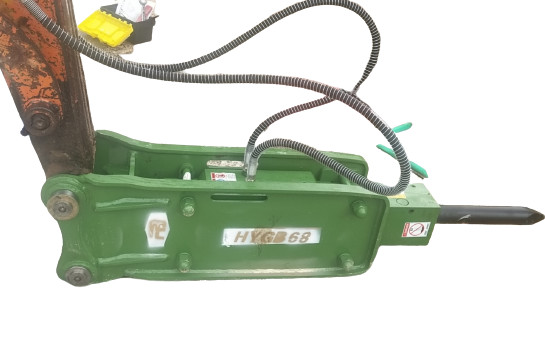

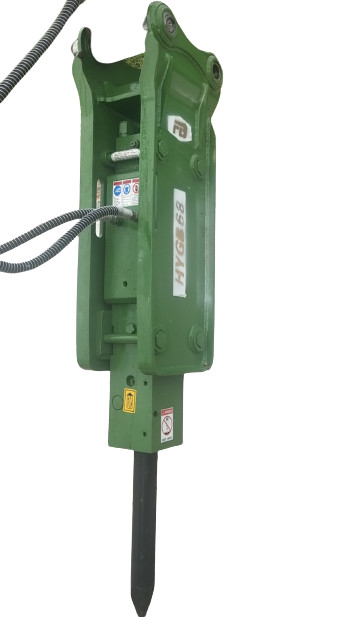

YSB85 14 tons Excavator Breaker Hammer 85mm Chisel Diameter
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | YSB85 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Body Weight | 282kg | Impact Frequebcy | 400-800 Bpm |
|---|---|---|---|
| Chisel Diameter | 85mm | Suitable Excavator(ton) | 7-14 Tons |
| Name | Mini Excavator Jack Hammer | Type | Hydraulic Breaker |
| High Light | 14 Tons Excavator Breaker Hammer,YSB85 Excavator Breaker Hammer |
||
Product Description
YSB85 mini excavator jack hammer best hydraulic hammers for excavators
Product model and relevant data
| Specname | Unit | YSB40 | YSB53 | YSB68 | YSB75 | YSB85 | YSB100 | YSB125 |
| Body weight | kg | 53 | 89 | 156 | 214 | 282 | 479 | 620 |
| size | mm | 918*176*360 | 1178*230*500 | 1373*295*772 | 1515*295*735 | 1735*390*910 | 1900*390*910 | 2286*480*1120 |
| 1086*156*189 | 1344*235*370 | 1684*350*486 | 1706*390*486 | 2120*438*570 | 2387*450*570 | 2673*498*600 | ||
| 1190*260*295 | 1417*350*305 | 1660*328*486 | 1712*328*486 | 2074*438*570 | 2345*440*570 | 2578*498*625 | ||
| Operating pressure | Kg/cm² | 90-102 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 150-170 |
| Hydraulic flow range | L/min | 15-25 | 25-50 | 40-70 | 50-90 | 60-100 | 80-110 | 90-120 |
| Diameter of house | inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 |
| Diameter of tool | mm | 40 | 53 | 68 | 80 | 85 | 100 | 125 |
| Impact frequebcy | bpm | 800-1400 | 600-1100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-650 |
| Suitable carrier | ton | 0.8-2.5 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 10-15 | 15-18 |
The bucket and excavator jack hammer work alternately. During the replacement process, because the hydraulic pipeline is easy to be polluted, it should be removed and installed according to the following methods.
1. Move the excavator to a flat place without mud, dust and sundries, turn off the engine, and release the pressure in the hydraulic pipeline and the gas in the oil tank.
2. Turn the stop valve installed at the end of the boom 90 degrees to the off position to prevent hydraulic oil from flowing out.
3. Loosen the hose plug on the boom of the crushing hammer, and then connect a small amount of hydraulic oil into a container.
4. To prevent soil and dust from entering the oil pipeline, plug the hose with a plug and the pipeline with an internal thread plug. In order to prevent dust pollution, tie the high-pressure pipe and low-pressure pipe with iron wire.
Mining: Breaking ore rocks, Second time crushing, Screen crushingProduct application range
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
Our company main products is hydraulic breakers, underwater breakers, and breaker parts and multifunctional attachments for Shuishan, Furukawa, Engineers, and Dongkong. At the same time, special devices for various working conditions can be tailored according to the customer's operating environment requirements.
