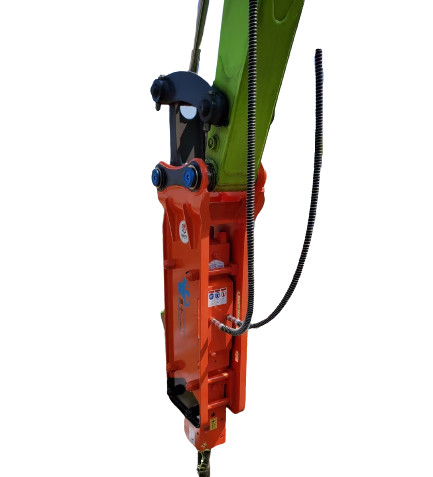

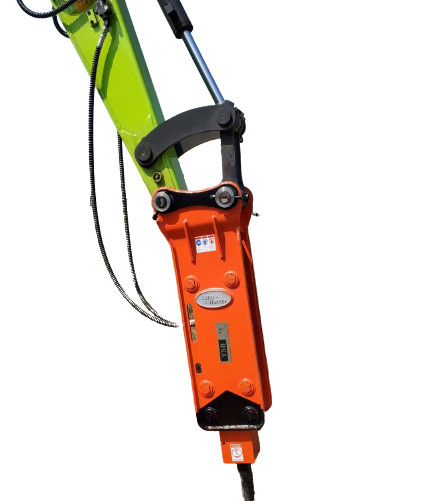

YSB75 Excavator Breaker Hammer 400bpm Hydraulic Rock Hammer

Place of Origin GUANGZHOU
Model Number YSB75
Minimum Order Quantity negotiable
Price negotiable
Packaging Details standard packing
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Week
Product Details
Body Weight 214kg Impact Frequebcy 400-800 Bpm
Chisel Diameter 80mm Suitable Excavator(ton) 6-9 Tons
Name Excavator Rock Breaker Type Hydraulic Breaker
High Light

YSB75 Excavator Breaker Hammer


400bpm Excavator Breaker Hammer


400bpm Hydraulic Rock Hammer

Leave a Message
Product Description

YSB75 rock hammer excavator hydraulic hammer for excavator for sale

Product features of excavator breaker hammer

·Durability design of deck: the exposed deck adopts steel plate to reduce the degree of wear.

·Durability design of oil seal: add oil return channel design on the pressed surface of oil seal to reduce the pressure of oil seal and improve the service life of oil seal.

·Lightweight design: it can match the efficiency of excavator and loader.


Product model and relevant data

Specname Unit YSB40 YSB53 YSB68 YSB75 YSB85 YSB100 YSB125
Body weight kg 53 89 156 214 282 479 620
size mm 918*176*360 1178*230*500 1373*295*772 1515*295*735 1735*390*910 1900*390*910 2286*480*1120
1086*156*189 1344*235*370 1684*350*486 1706*390*486 2120*438*570 2387*450*570 2673*498*600
1190*260*295 1417*350*305 1660*328*486 1712*328*486 2074*438*570 2345*440*570 2578*498*625
Operating pressure Kg/cm² 90-102 90-120 110-140 120-150 130-160 150-170 150-170
Hydraulic flow range L/min 15-25 25-50 40-70 50-90 60-100 80-110 90-120
Diameter of house inch 1/2 1/2 1/2 1/2 3/4 3/4 1
Diameter of tool mm 40 53 68 80 85 100 125
Impact frequebcy bpm 800-1400 600-1100 500-900 400-800 400-800 350-700 350-650
Suitable carrier ton 0.8-2.5 2.5-4.5 4-7 6-9 7-14 10-15 15-18

Mining: Breaking ore rocks, Second time crushing, Screen crushingProduct application range

Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration

Our company main products is hydraulic breakers, underwater breakers, and breaker parts and multifunctional attachments for Shuishan, Furukawa, Engineers, and Dongkong. At the same time, special devices for various working conditions can be tailored according to the customer's operating environment requirements.
