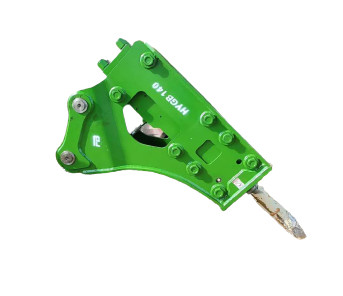

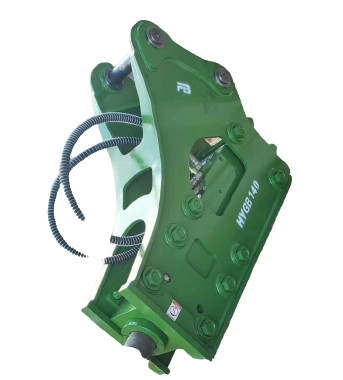

YSB40 Excavator Breaker Hammer Triangular Hydraulic 1400bpm
| Place of Origin | GUANGZHOU |
|---|---|
| Brand Name | FANGBANG |
| Model Number | YSB40 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | standard packing |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Piece/Pieces per Week |
Product Details
| Body Weight | 53kg | Impact Frequebcy | 800-1400bpm |
|---|---|---|---|
| Chisel Diameter | 40mm | Suitable Excavator(ton) | 0.8-2.5 Tons |
| Name | Triangular Hydraulic Hammer | Type | Hydraulic Breaker |
| High Light | YSB40 Excavator Breaker Hammer,Triangular Hydraulic Excavator Breaker Hammer,1400bpm Excavator Breaker Hammer |
||
Product Description
YSB40 excavator jack hammer breaker hammer For Mini Excavators
Product Application
Hydraulic Hammer is abbreviated as "Breaker".It is fit for various kinds of excavators.
The power source of the hydraulic breaker is the pressure provided by the excavator,loader or pumping station. It can crush stones and rocks more effectively in engineering construction and improve work efficiency. The principle of selecting a hydraulic breaker is to select the most suitable hydraulic breaker according to the model of the excavator and the operating environment.
Product model and relevant data
| Specname | Unit | YSB40 | YSB53 | YSB68 | YSB75 | YSB85 | YSB100 | YSB125 |
| Body weight | kg | 53 | 89 | 156 | 214 | 282 | 479 | 620 |
| size | mm | 918*176*360 | 1178*230*500 | 1373*295*772 | 1515*295*735 | 1735*390*910 | 1900*390*910 | 2286*480*1120 |
| 1086*156*189 | 1344*235*370 | 1684*350*486 | 1706*390*486 | 2120*438*570 | 2387*450*570 | 2673*498*600 | ||
| 1190*260*295 | 1417*350*305 | 1660*328*486 | 1712*328*486 | 2074*438*570 | 2345*440*570 | 2578*498*625 | ||
| Operating pressure | Kg/cm² | 90-102 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 150-170 |
| Hydraulic flow range | L/min | 15-25 | 25-50 | 40-70 | 50-90 | 60-100 | 80-110 | 90-120 |
| Diameter of house | inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 |
| Diameter of tool | mm | 40 | 53 | 68 | 80 | 85 | 100 | 125 |
| Impact frequebcy | bpm | 800-1400 | 600-1100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-650 |
| Suitable carrier | ton | 0.8-2.5 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 10-15 | 15-18 |
Mining: Breaking ore rocks, Second time crushing, Screen crushingProduct application range
Metallurgy: Steel ladle and slag cleaning, Fumace dismantling, Equipment foundation removal
Public road: Highway repair, Cement pavement broken, Foundation excavation
Railway: Mountain and tunnel excavation, Road and bridge demolition, Subgrade compaction
Building: Demolition of old buildings, Broken reinforced concrete
Ship repairing and Construction: Removing clam and rust
Others: Breaking ice, Breaking frozen soils, Sand mold Vibration
