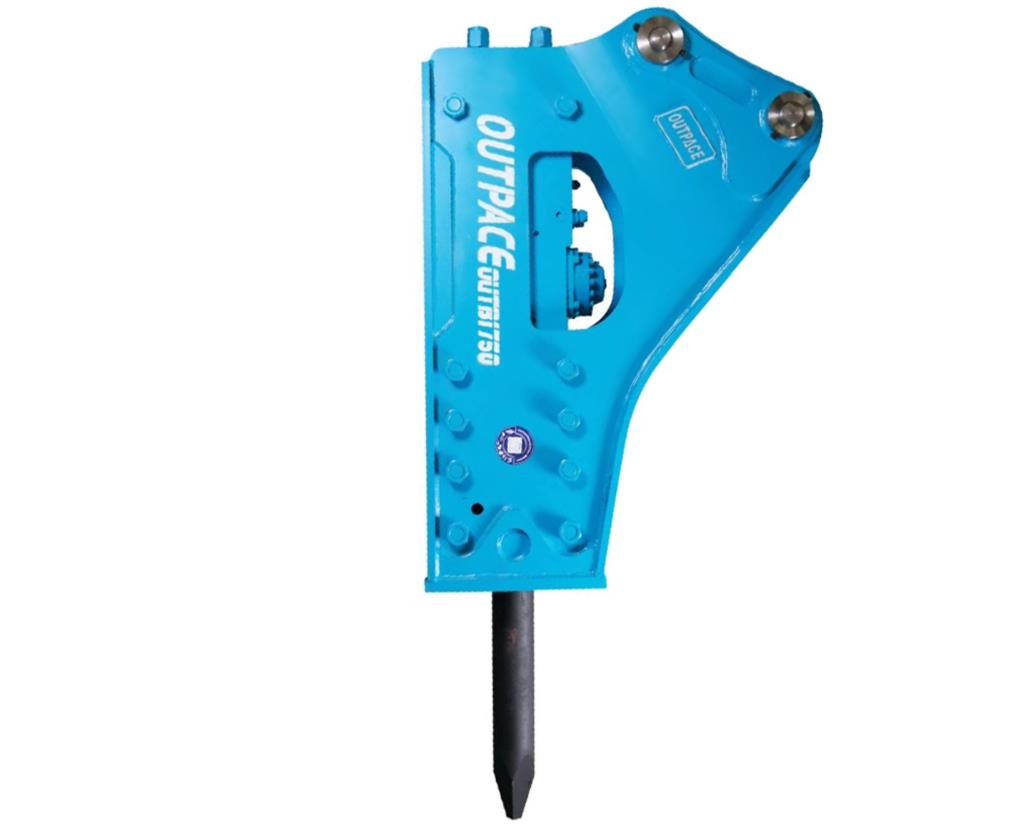

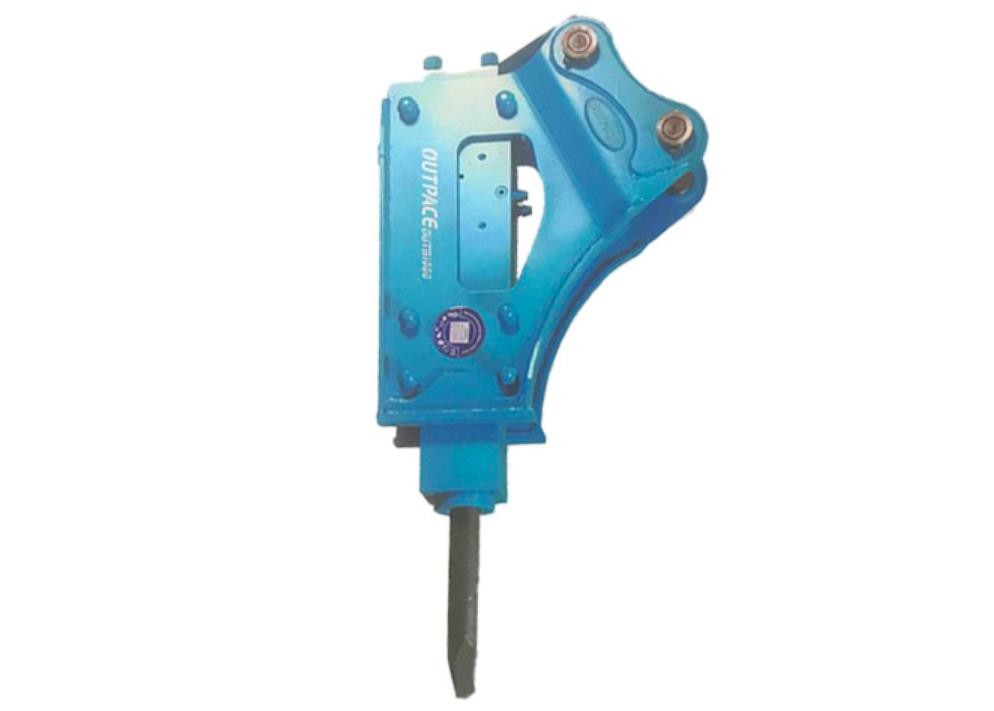

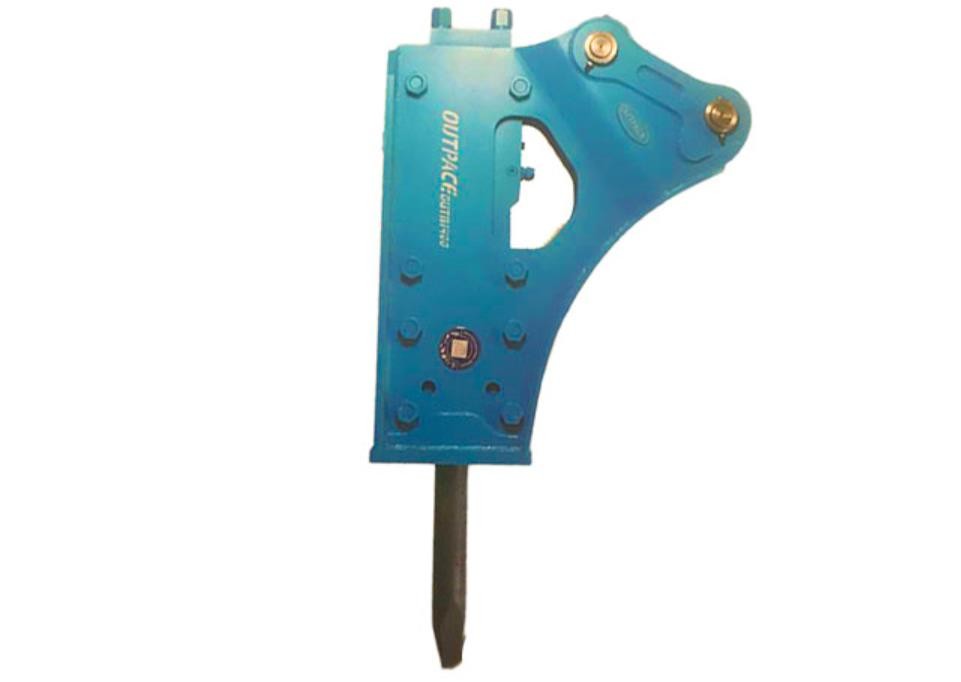

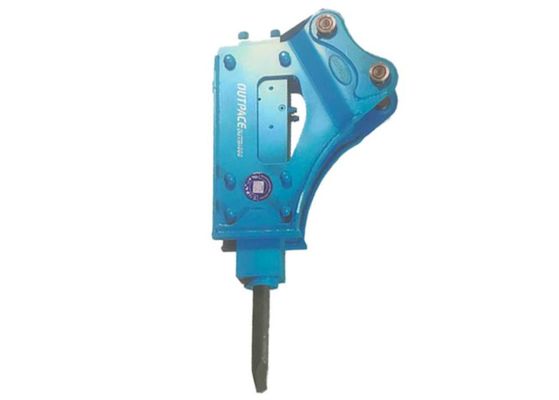

Breaking Demolition Excavator Breaker Hammer For Cat 330 Excavator

Place of Origin GUANGZHOU
Minimum Order Quantity negotiable
Price negotiable
Packaging Details standard packing
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 1000 Piece/Pieces per Week
Product Details
Tool Diameter 155MM Applicable Industries Construction , Mining
Applicable Excavator 10-15 Ton Part Name Hydraulic Breaker Hammer
Length 3710/3618/3200 Mm Place Of Origin Guangdong, China
High Light

155MM Excavator Breaker Hammer Cat 330


155MM hydraulic breaker hammer Cat 330


15 ton Breaking Demolition Excavator Breaker Hammer

Leave a Message
Product Description

hydraulic breaker hammer excavator for sale reliable quality longer working life


hydraulic breaker hammer exvacator have following features:

1. Track-able raw material, we make exact instruction to purchase department to source from fixed good quality steel material factory.And the hydraulic breaker material should be track-able from the beginning.

2. Producing with batch parts orders, all the mini excavator hydraulic breaker parts we are producing with fixed standard drawing, forbidding casual producing to keep all the parts are standard after inspected.

3. Every mini excavator hydraulic breaker main body should be impact tested before the final delivery to make sure it can work immediately while the user get it installed.

4. Overseas sales and service branch for quick mini excavator hydraulic breaker parts service wanted by users.

5. Successful mini excavator hydraulic breaker distributor support policy including financial, sales and training service.



The hydraulic breaker is used for breaking or demolition.The power should be the first thing we should think about.

a. max power hydraulic breaker is designed with pneumatic and hydraulic power driving together. The quick inflated power can enlarge the piston impacting power obviouslly.

b. The precision tolerance control between piston and cylinder can make sure minimum hydraulic power loss while the piston moving in the cylinder before impacting the tool head.

c. Choosing good material for piston, cylinder,seal kits is also making the minimum hydraulic power loss while piston moving.

d. Longer piston stroke design is also a feature whick makes bigger impact power than others.

e. Accumulator device can collect more power for next impacting meanwhile protecting the excavator hydraulic system


hydraulic breaker hammer exvacator models and specifications:

Model Unit FB155
Tool Diameter MM 155
Weight of Main Body KG 1157
Operation Weight KG 2629
Impact Rate Bpm 300-450
Operating Pressure Bar 160-180
Required Oil Flow L/Min 170-230
Hose Diameter Inch 1 1/4
Excavator Weight Ton 29-33


hydraulic breaker Standard Package:

(1) Two demolition moil tools

(2) Two In/Out hoses

(3) One Repair Seal Kits

(4) One tool Box

(5) One Gas Bottel

(6) One set gas charge kits


Service Introduction:

1. Pre-Sales Service


2. Order Service


3. After-sales Service
