Powerful Percussion 25L/Min Excavator Breaker Hammer 1400 bpm

Place of Origin GUANGZHOU
Product Details
Impact Frequency 800-1400 Bpm Warranty 1 Year
Hydraulic Flow Range 15-25L/Min Diameter Of Hose 1/2 Inch
Suitable Excavator 0.8-2.5 Ton Body Weight 53kg
High Light

25L Min Excavator Breaker Hammer


53kg concrete demolition hammer


Excavator Breaker Hammer 1400 bpm

Leave a Message
Product Description

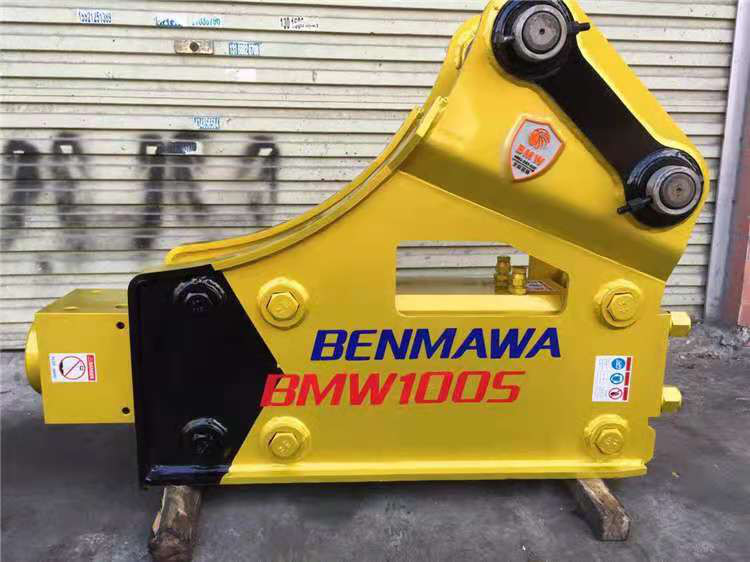

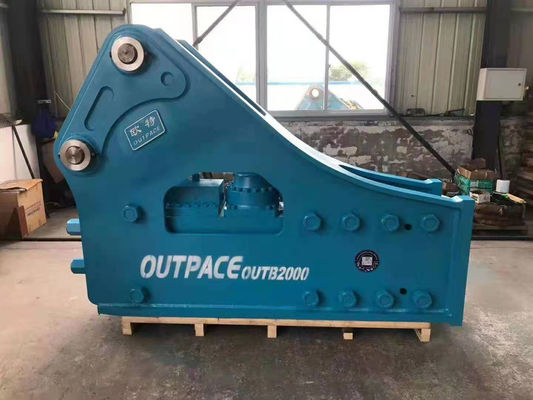

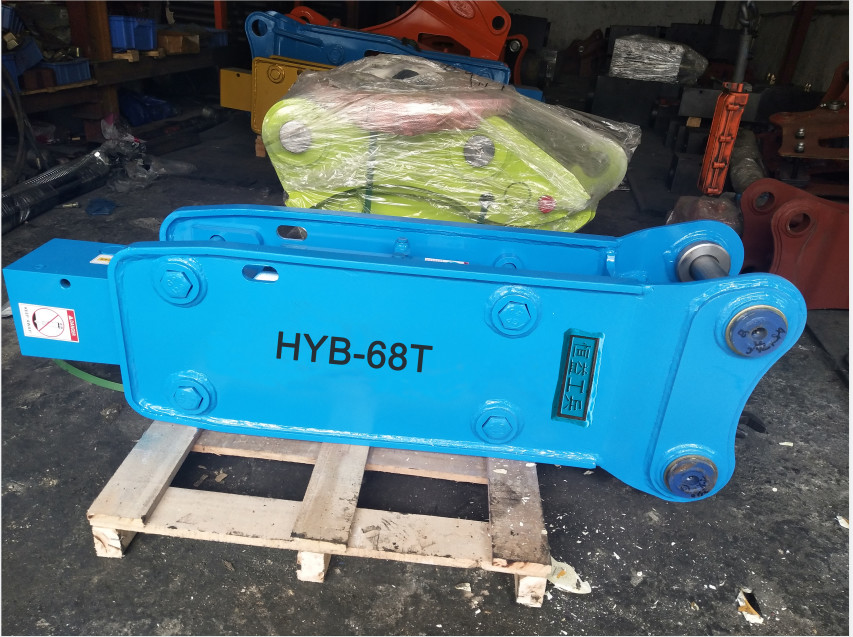

Powerful Percussion 25L/Min Excavator Breaker Hammer



What is the Hydraulic Breaker?

Hydraulic breaker is a powerful percussion hammer fitted to an excavator for demolishing concrete structures or rocks.


Application of Hydraulic Breaker Hammer

1.Mining: Mountains, mining, crushing, secondary crushing.
2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied.
3.Railway: tunnel, bridge, mountain down.
4.Highway: highway repair, cement pavement broken, foundation excavation.
5.Municipal gardens: concrete crushing, water,electricity, gas engineering construction, the transformation of the old city.
6.Building: the old building demolition, reinforced concrete broken.
7.The ship hull in mussels.
8.Other: ice breaking, breaking the Vibrating Sand.

Mining:Mining,second-time breaking
Metallurgy:Clearing slag,Demolition of furnace and foundation
Road:Repairing,Breaking,Foundation work
Railway:Tunneling,Demolition of bridge
Construction:Demolition of building and reinforced concrete
Ship repairing:Clearing clam and rust from the hull
others:Breaking Frozen mud
Patented body design
Inner valve
Quiet operation
Fuel saving
Low maintenance cost
Smart bracket design
Energy recovery system
Various working tools
Product Description


unit DEHN1400 DEHN1550 DEHN1650 DEHN1750
operation weight(side/top/box) kg 1774/2059/1866 2577/2745/2968 2751/3156/2916 3905/4057/3902
length(side/top/box) mm 2480/2866/2793 2776/3102/3075 2820/3285/3337 3184/3812/3723
working flow rate 1iter/min 120-180 180-240 200-260 200-260
oil relief pressure kg/cm² 210 230 240 240
working pressure kg/cm² 160-185 170-200 160-180 180-200
impact rate bpm 350-500 300-450 250-400 200-350
chisel diameter mm ¢140 ¢1550 ¢162 ¢1750
oil pipe nominaldiameter inch 1 1 5/4 5/4
back head pressure kg/cm² 16±0.5 16±0.5 16±0.5 16±0.5
Accumulator pressure kg/cm² 60 60 60 60
Applicable Excavator weight ton 18-26 27-36 30-40 35-40
Applicable Bucket 0.9-1.2 1.0-1.4 1.6-2.2 1.6-2.2
Value Ass'y Position   internal internal internal internal


We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swivel joint, fuel tank, filter, boom, arm, bucket etc.
For more information please contact with our company.
